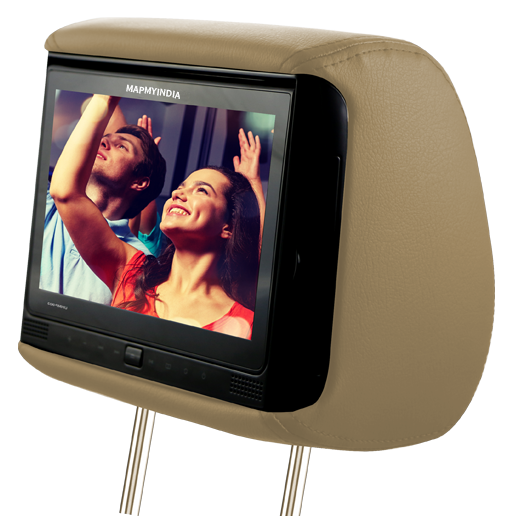

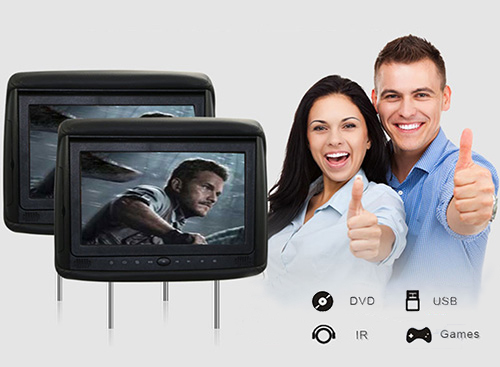

MapmyIndia UHMP-903

Rear Seat Entertainment System with Smart PhoneLink

Ultimate rear seat entertainment experience in your car and beyond!

Watch your favorite movie on the big screen in the backseat of your car. UHMP – 903 is MapmyIndia's best-in-class product, with wide range of features. It comes with wireless smart PhoneLink connectivity for Android and iOS, to extend all the benefits of premium rear seat entertainment. Graceful and stylish, a complete family entertainment system for your car.

Why MapmyIndia UHMP-903 smart PhoneLink RSE

  • Ultimate rear seat entertainment experience in your car and beyond!
  • Easy installation
  • Device comes bundled with black and beige color covers to match your car interiors
  • SD/USB media playback support for entertainment on your journey
  • DVD playback support
  • Wireless Smart PhoneLink connectivity for both Android* and iOS*
  • Enjoy your favorite videos (Playing on head unit) on wide screen while sitting on rear seat**
  • Listen to audio through headphone
  • Built in speaker
  • IR feature to enjoy music using IR headphone
*All models may not be compatible
**Head unit needs to have AV-IN

Features

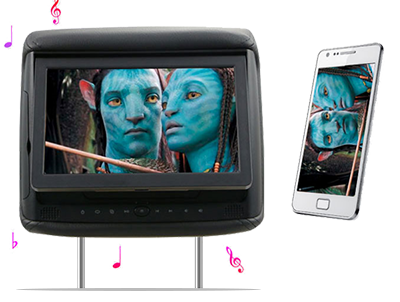

Smart PhoneLink support

  • Wireless smart PhoneLink solution for both iOS* and Android*
  • Watch/listen to your favorite movie/music on your phone or on big screen
  • Use Navigation on big screen using Smart PhoneLink
    • *All models may not be compatible

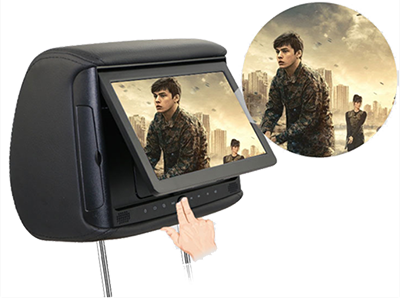

Superior Visual effect

  • High pixel with 800 x 480 resolution
  • Magical, energetic, High quality audio-video effect

Wide Compatible Formats DVD Player

  • The DVD player is compatible with the most DVD and CDs which are available in the market
  • DVD/SVCD/VCD/DVD-5/CD/CD-R/CD-RW/DVD-9/DVD±R/DVD±RW compatible formats

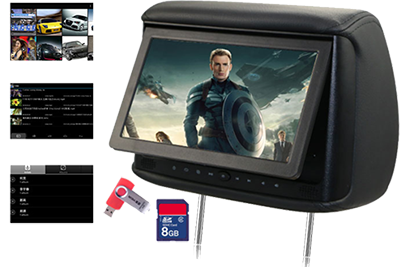

SD/USB playback

Easily plug and play SD/USB and supports multiple formats of music, movies, video and pictures creating a magical, energetic atmosphere with surrounding high quality audio & video effects.

Built in IR Transmitter

Device supports IR based remote control to help you change the settings on the device.

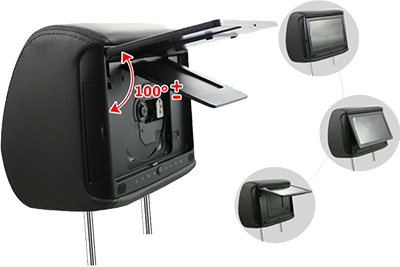

Adjustable Screen Angle

The player angle of the screen can adjusted according to the user requirements for optimal viewing up to 100 degrees.

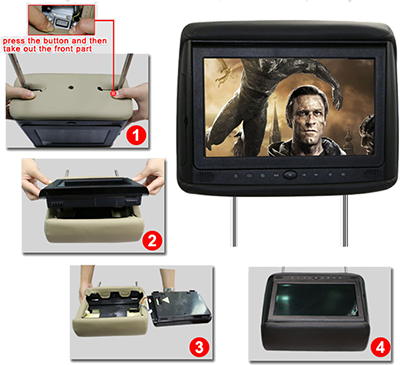

Replaceable cover selection advantage

  • Match your car interiors. Select between black and beige color.
  • It is also a dust proof design protecting screen and internal housing

Product Specifications

Parameters Specifications
Supporting format for DVD playback DVD/CD/VCD/MP3/WMA/Divx/MPEG4 /USB/SD/MC/MMS
AV-IN/ AV-OUT 1A/V input, 1A/V output
Display 22.9cm (9inch) TFT screen
Resolution 800 x 480, 16:9
HD Playback support 720 x 576 playback
Speakers Stereo Speakers
USB USB 2.0 Support
Color Bundle with Black and Beige color
Dimensions 268mm x 205mm x 138.5mm
Slot for media playback USB and SD
Power supply 12V DC

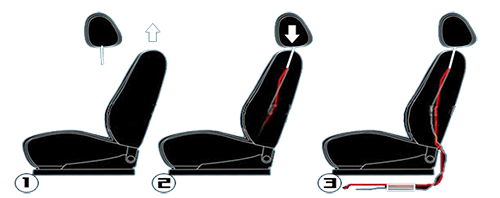

Installation

  • Remove your existing headrest.
  • Pull out the existing headrest unit. Put all the cables through the holes of the pole pits. Now slot in the new headrest in to the poll pits. Slide the wires through the seats and then under the carpet upholstery.
  • Connect the 12V power cables to any places with 12V car power supply (eg. Dashboard, head unit)

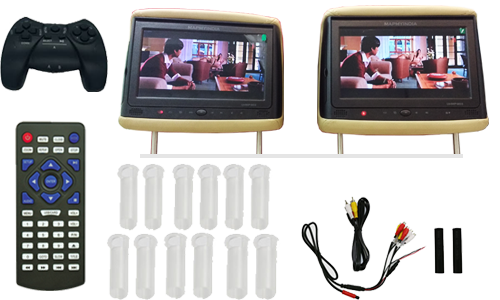

In the Box

  • Two Head rest monitor (Master & Slave)
  • Two power cable
  • Remote
  • Warranty card
  • User manual
