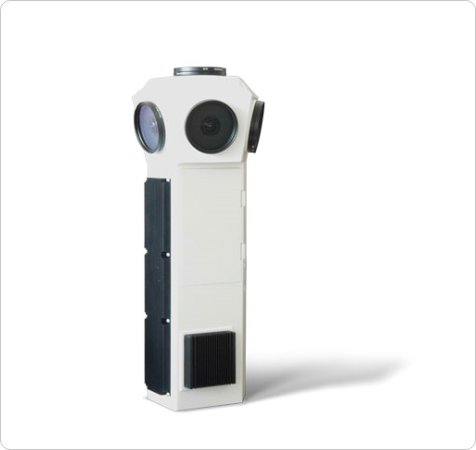

Camera

RealView Camera System is integrated technology platform used to record high resolution geo-referenced panoramic images.

  • 6 Cameras record at a 30 Megapixel resolution at 7 frames per second
  • Three recording modes
    • Distance
    • Time
    • Manual
  • Coverage is 360 x 160 degree, i.e the whole world except the cars rooftop
  • Levelling sensor for Image stabilization
  • GNSS receiver covers 4 independent GPS systems for high accuracy mapping
  • Each panorama is fully geo-referenced with Latitude, Longitude, Altitude, Direction, GPS date and time and local date and time

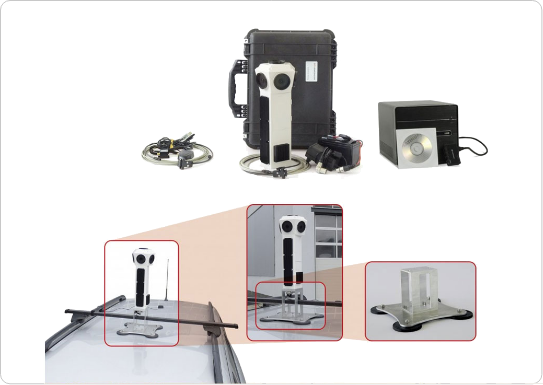

Car Camera

Car Camera System is a complete solution to mount camera on car for capturing 360 degree panorama images for any professional imaging needs. Camera includes remote control to control the camera settings, GNSS receiver for high accuracy mapping world-wide, dedicated leveling sensor for automatic leveling, battery and SSD to store the data.

Backpack Camera

The Backpack Camera System is for recording when walking, hiking, or riding a bicycle, motorcycle etc. It is the only solution to map out the rarest part of the earth where no one has gone. It captures 360 degree panorama images. Camera includes remote control to control the camera settings, GNSS receiver for high accuracy mapping world-wide, dedicated leveling sensor for automatic leveling, lightweight battery and SSD to store the data.

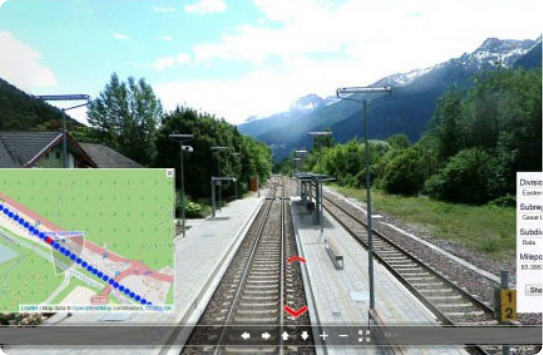

Railway Camera

The Railway Camera System is rainproof camera for recording by locomotive or a road-rail vehicle to map the areas around railway track. It can be easily mounted and operated by a single person without any engineer. Its recording capacity is 1000 km of railroad track when set to record a panorama every 5 meters. Camera includes remote control to control the camera settings, GNSS receiver for high accuracy mapping world-wide, dedicated leveling sensor for automatic leveling, lightweight battery and permanently build-in 1 TB SSD to store the data.

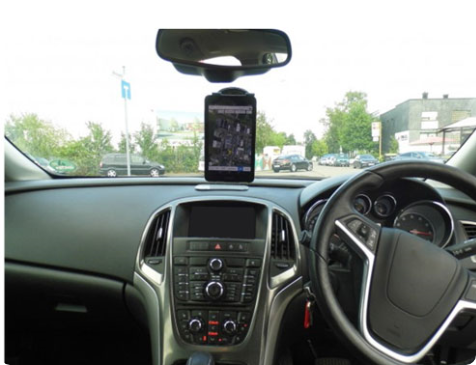

Remote Control

7 inch Android Tablet used to control the settings of camera. It shows the live preview of the photos recorded by camera along with Map/aerial images to show the current GPS position of car. Photos can be captured in following three modes:

  • By distance: E.g. 5 meters. You can set the distance by yourself.
  • By interval: 1 to 30 seconds.
  • Manual release. Tap a button on the tablet to capture the photos.

It comes with multi-language support. It can display kmz/kml overlay to indicate what roads to record.

GPS Receiver

For positioning and leveling, the RealView Camera is available with GPS receiver, Accelerometer, Gyroscope, and Magnetometer

Provides accuracy up to sub centimeter Provide consistently accurate data over an extended temperature range of -40°C to 85°C Obtain GNSS Satellite in 3 seconds
